Liquid washing mixing system

in stock

The liquid washing homogeneous mixer produced by our company is mainly suitable for the configuration of liquid detergent (such as dishwashing liquid, shampoo, shower gel, etc.). The mixer integrates stirring, dispersion, heating, cooling, pumping, and defoaming (optional) Type) and other functions in one, is the ideal equipment for washing at home and abroad.

Description

Use

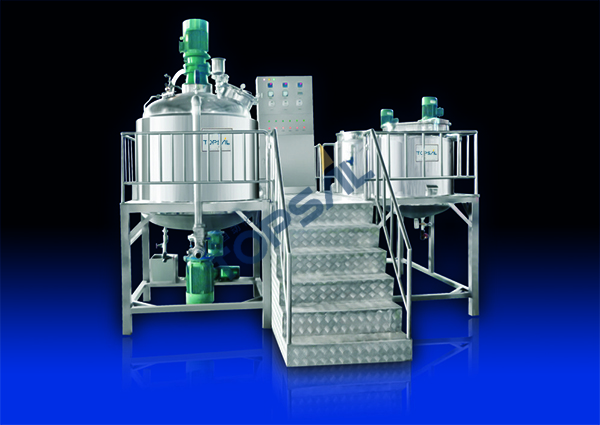

The liquid washing homogeneous mixer produced by our company is mainly suitable for the configuration of liquid detergent (such as dishwashing liquid, shampoo, shower gel, etc.). The mixer integrates stirring, dispersion, heating, cooling, pumping, and defoaming (optional) Type) and other functions in one, is the ideal equipment for washing at home and abroad.
Performance and characteristics
♦The all-round scraping wall mixing adopts frequency converter speed regulation, which can produce high-quality products with different processes according to customer requirements;
♦A variety of high-speed homogenizers, powerfully mixing solid and liquid raw materials, can quickly dissolve insoluble materials such as AES, AESA, LSA in liquid washing production, saving energy consumption and greatly shortening the production cycle;
♦The pot body is welded with three layers of stainless steel imported plates. The tank body and pipes are mirror-polished, which fully meets GMP requirements;
♦According to the process requirements, the tank can heat and cool the materials. There are mainly two types of heating methods: steam and electric heating. The discharge is convenient and can be directly discharged;



Technical Parameters
Model Volume(L) Mixing power(kw) Stirring speed(r/min) Homogeneous power(kw) Homogeneous speed(r/min) heating method
PME-200 200 0.75 0-65 2.2-4 3000 Steam or electric heating (optional)
PME-300 300 0.75 0-65 2.2-4 3000
PME-500 500 2.2 0-65 5.5-7.5 3000
PME-1000 1000 4 0-65 7.5-11 3000
PME-2000 2000 5.5 0-53 11-15 3000
PME-3000 3000 7.5 0-53 18 3000
PME-5000 5000 11 0-42 22 3000

Note: The data in this table is inconsistent due to technical improvements and customization. The actual product shall prevail.
