Super quality SUS304 SUS316 stainless steel honey storage tank

in stock

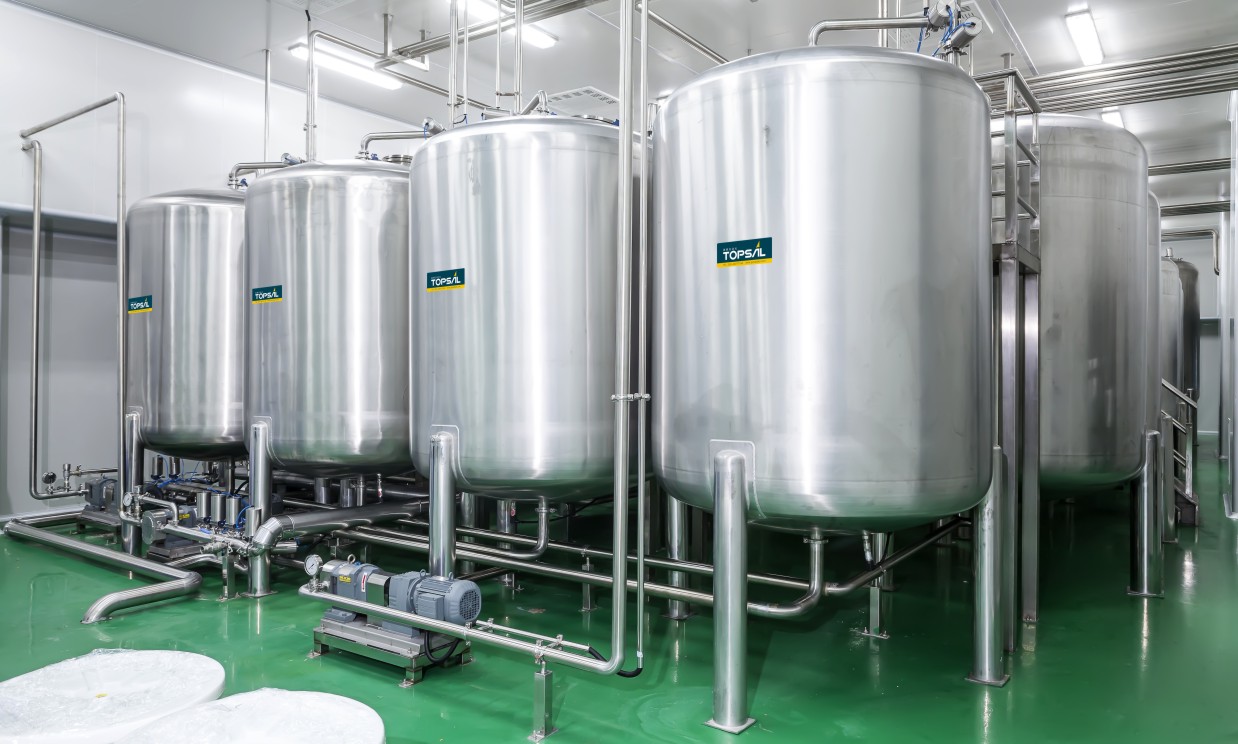

We can make single-layer, dual-layer and three-layer stainless steel tanks with or without agitation to blend products. Fixed type or movable type is optional. These tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards.

Description

Nominal capacity
300L
400L
500L
600L
800L
1000L
1500L
2000L
3000L
Cylinder diameter
(mm)
Φ800
Φ800
Φ900
Φ1000
Φ1000
Φ1200
Φ1300
Φ1300
Φ1600
Shell height
(mm)
600
800
800
800
1000
1000
1200
1500
1500
Working temperature
<100℃
Basic parts
Manhole, cleaning ball, level gauge (500L)


Main Features:
1.Quick opening cover.
2. Adopt mirror polishing.
3.Equiped with the CIP cleaning .
4. Good in sealing, sanitary ventilation hood to defend against flies insects.
5 Removable legs, with wheels, or fixed type.
6. Detachable feeding tubes.
7. Thermometer (According to the customer’s requirements.)
8. Adjustable triangular bracket .
9. Flat cover or sealed cover is optional.
10. Liquid level meter and level controller (according to your request ).
