Description
Work principle:
1. Through the movement of the cylinder of forward and backward to make the piston which is located in the cylinder do reciprocating movement, so as to engender the negative pressure in the preceding chest of the cylinder.
.2. The piston is pulled backward when the cylinder make forward movement, the material cylinder occurred negative pressure, the materials in the barrel are pressed into the feeding pipe by pressure and go into the material pipe through unidirectional valve of feeding and discharging materials.
3. The piston is driven forward when the cylinder make backward movement, the materials are pressed and go into discharging pipe through unidirectional valve of discharging materials, enventually filled into the empty bottle which need to be filled, then one time filling finished.
4. It is a single and simple action to each time of filling for the piston filling machine, so it has very high filling precision and stability to every regular container.
Features:
1. The precision of filling can be ±1%. 2. Easily adjusting the filling quantity. 3. It’s easy to operate and maintain. 4. Setting the manual gear and automatic gear. 5. With stainless steel, accords to the GMP standard. 6. It can be made into two heads for high production. 7. Only compressed air needed. It is safe to run the machine without electricity. 8. This machine can be installed with a sucking tube or a hopper.
|
Product name
|

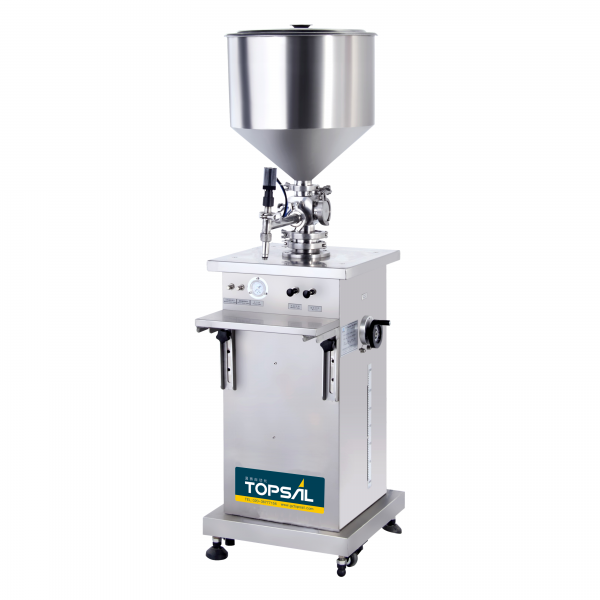

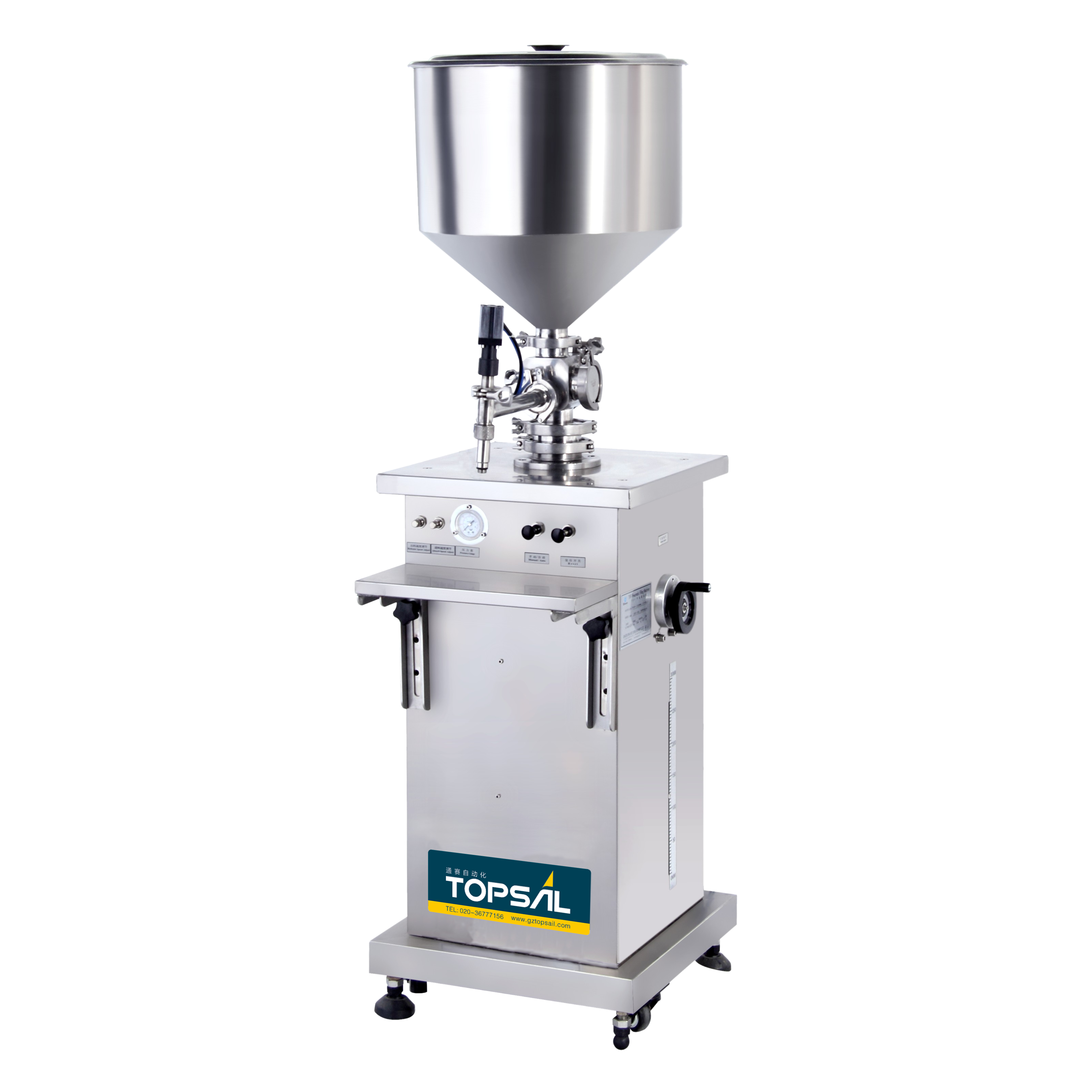

Topsail Semi-auto Filling Machine
|
|
Filling Accuracy
|
±1%
|
|
Filling volume
|
50-60ML
|
|
Hopper
|
30L
|
|
Air pressure
|
0.4-0.6MPa
|
|
Filling speed
|
20-60 bottles per minute
|
|
Material
|
Part contact with material is SUS 316L,other part SUS304
|
|
Filling material
|
Water, honey, yogurt, liquid coffee, ink, liquid eye shadow, syrup Tea, fruit juice, shower gel, liquid soap, milk, gear oil, cream, glue, shampoo, chemicals, food paint, hand sanitizer, food oil
|
|
weight
|
50KG
|
|
Dimension(L*W*H)
|
450*450*1500mm
|
